HGL S-Series · Factory direct

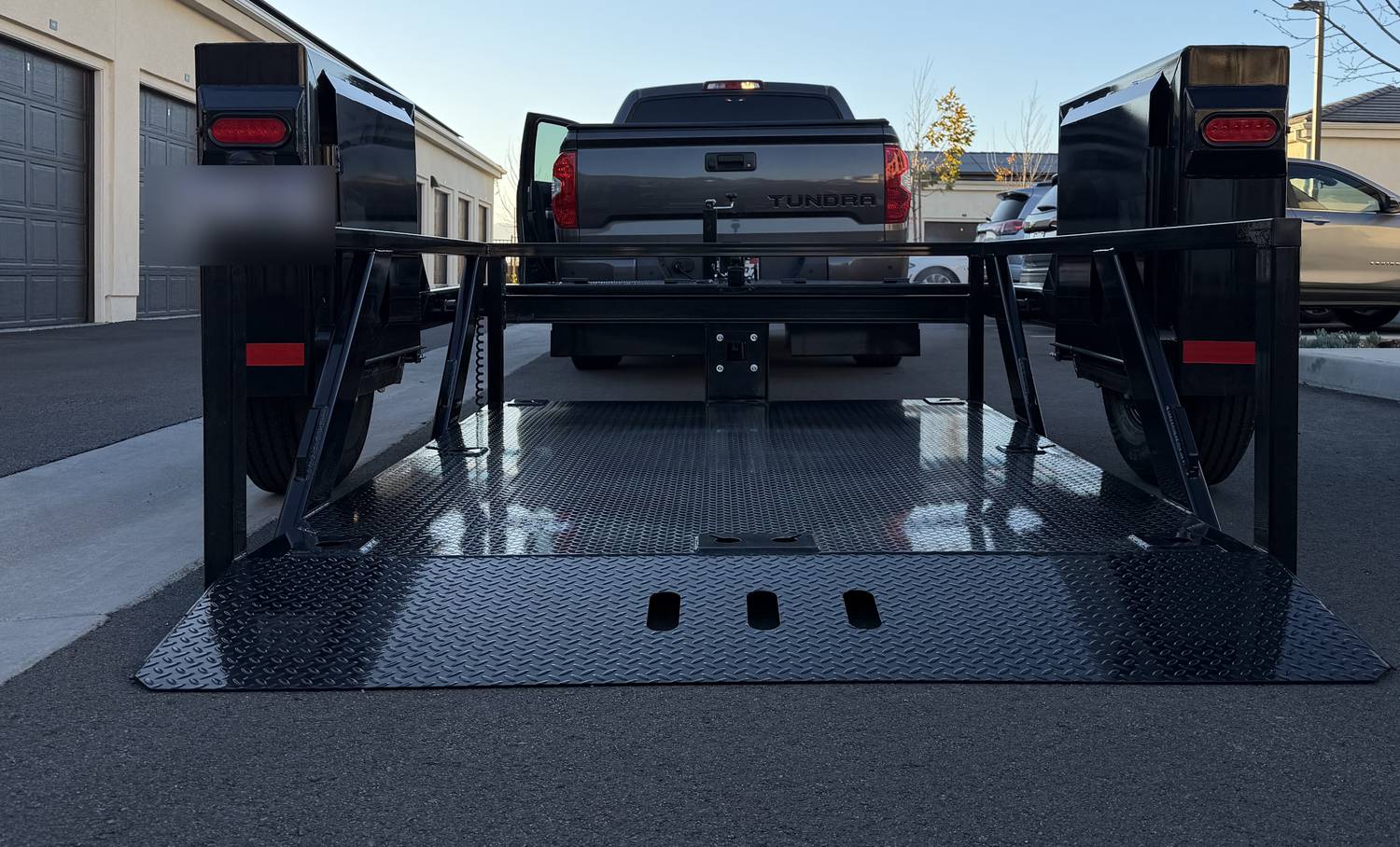

Single axle trailer with a 10 foot length in three different sizes. The deck lowers flat to the ground, so equipment rolls straight on.
What it's for
The S-Series is the smallest way to get hydraulic ground-level loading. One axle, a ten foot deck, and a hydraulic lift that puts the bed flat on the pavement.
It's built for equipment that can't be driven up a ramp and doesn't need ten thousand pounds of capacity behind it. Scissor lifts, mini skid steers, floor scrubbers, ATMs, vending machines, safes, concrete tools, and large toolboxes.
Single axle means it's easier to maneuver in a yard, easier to back into a driveway, and lighter to tow than anything in the T-Series. If you're hauling under 5,000 pounds, this is the series.
Single axle options
All three share the same ten foot length, the same hydraulic system, and the same warranty. They differ on exactly two things.
| Model | Deck | Payload | Trailer weight | GVWR | Details |
|---|---|---|---|---|---|
| HGL3510SLightest | 10' × 60" | 3,500 lbs | 1,500 lbs | 5,000 lbs | View HGL3510S → |
| HGL5510SSame deck, more capacity | 10' × 60" | 5,000 lbs | 1,625 lbs | 6,625 lbs | View HGL5510S → |
| HGL5610SWidest deck | 10' × 72" | 5,000 lbs | 2,200 lbs | 7,200 lbs | View HGL5610S → |
Not sure which one clears your equipment? Call us with the machine you're hauling and we'll tell you which deck it fits on.
Our suspension
Left: the assembly on its own. Polyethylene guides ride in channels on the frame, with a SumoSprings spring seated above them, so the wheel travels vertically instead of fighting the deck. Right: the same assembly installed, deck removed.
We utilize an advanced D-frame axle system, allowing each wheel to operate independently, unlike traditional axles that can restrict deck movement. This facilitates smooth raising and lowering, as well as enhanced stability and dependability, even in harsh conditions.
Our trailers feature a patented TorsionSlide Suspension, which provides vertical wheel movement for enhanced stability and improved mobility. This provides a smooth pull and increases durability compared to basic suspension systems.
The spring itself is a solid SumoSprings unit riding on polyethylene guides. There is no air system to plumb, and no steel leaf pack to fatigue.
No lines.
No leaks.
No maintenance.
Backed with the confidence of a 5 year warranty, this torsion suspension is here to stay. Giving your trailer the smoothest pull and also eliminating excess wear parts.
Standard equipment
Built to order. With all heavy duty components, this trailer is built to withstand the toughest of jobs and climates. All trailers come finished with a powder coat paint, and custom colors are free of charge.
Options
Watch & Learn
Protect your equipment and your crew.
The player only loads when you press play.
Please let us know which model you are looking for, and we'll come back with specifications, pricing, and lead times.
